Noise-Lock Acoustic Steel Doors
Since 1949 IAC Acoustics has installed more than 100,000 sound control doors in a wide variety of applications with STC (Sound Transmission Class) ratings from STC 43 to STC 64 and NIC 70 assembly. All IAC sound-rated door designs are tested in NVLAP accredited laboratories. Of greater importance is consistently high in-field noise reduction attained under actual job conditions. IAC delivers a fully factory assembled door unit including leaf, time saving split frame, seals, latching hardware and glazing. IAC Noise-Lock® custom doors are designed to meet your specific functional and dimensional access requirements.
20, 60, 90 min and 3-hr Fire 3 PSI Blast STC 43 to 64 and NIC 70 assembly.
Video of Steel acoustic doors
STC 43 STEEL ACOUSTIC DOOR
STC 55 STEEL ACOUSTIC DOOR

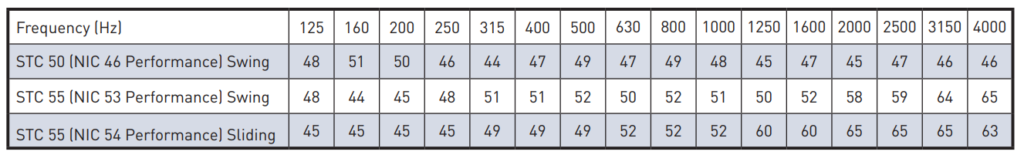

Steel Acoustic Door Acoustic Performance
STC 50 (dB) to achieve minimum NIC 45 & STC 55 (dB) to achieve minimum NIC 50 once installed
Acoustic Door Features
- Fully factory assembly and functional testing
- Self-aligning magnetic seals provide durability and high field performance under adverse conditions
- Cam-lift hinges and ADA compliance
- NVLAP Laboratory Testing of all designs
- Time saving split frame
- Wood Veneer finish over 100 species
- SCIF Rooms
Acoustic Door Ratings
- 20, 60, 90 min and 3-hr Fire Rating
- 1 PSI Blast
- STC 43 to 64 and NIC 70 assembly
Acoustic Door Applications
- Auditoriums
- Concert Halls
- Control Rooms
- Convention Centers
- Conference Rooms
- Engine Test Cells
- Music Practice Areas
- Offices
- Machinery Enclosures
- Radio Studios
- Mechanical Equipment Rooms
- Recording Studios
- Secure Areas
- Pulpits
- TV
- Stage/Prop Areas
- RF/Acoustic Shielded Facilities
- Test Facilities
- Vibration Test Labs
