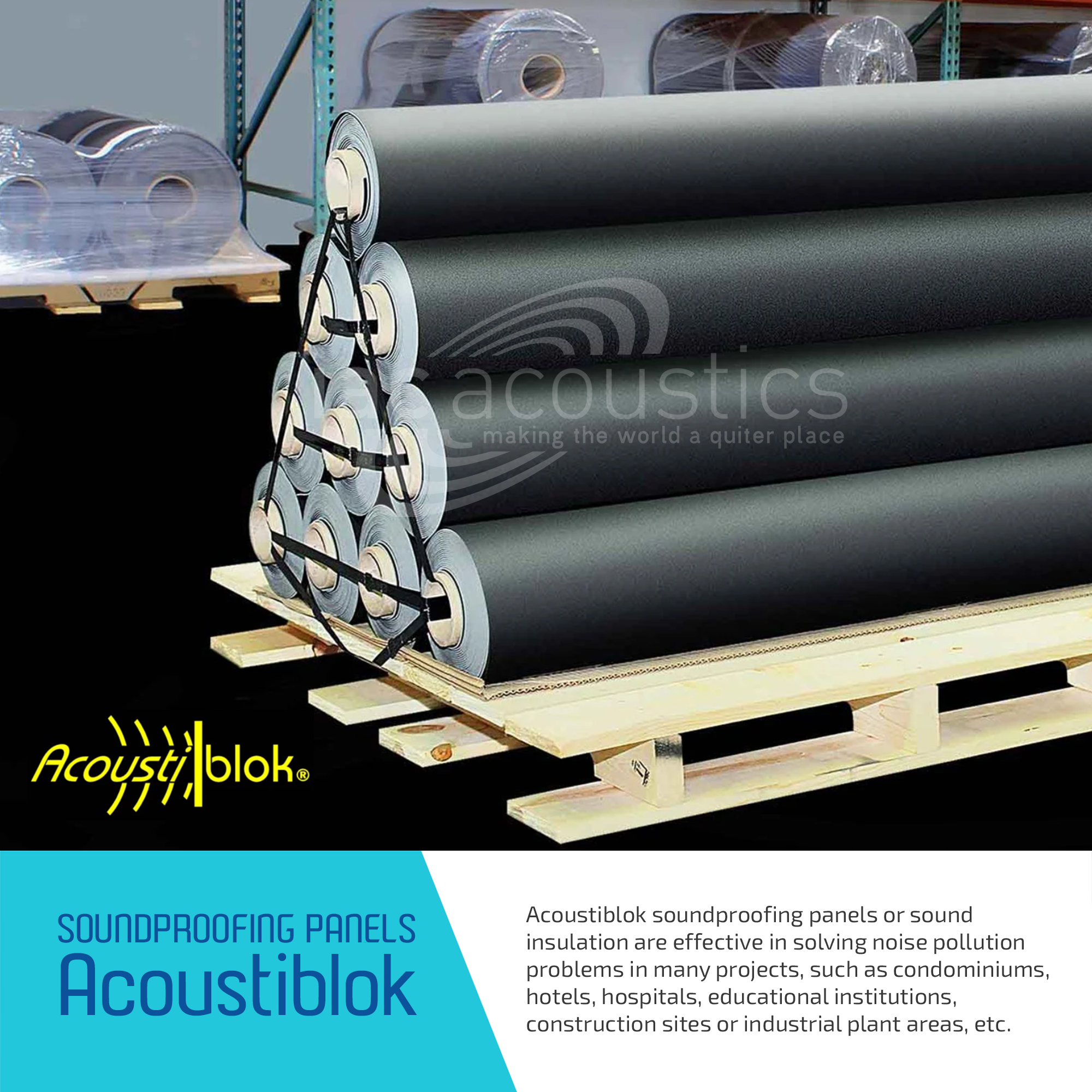

Soundproofing Material Acoustiblok

Soundproofing Material Acoustiblok is effective in solving noise pollution problems in many projects, such as condominiums, hotels, hospitals, educational institutions, construction sites, or industrial areas, etc.

Price per roll 1 roll size 9.15 x 1.37 meters (30 inches x 54 inches) 12.5 sqm

Specific features:

Weight: 4.89 kg/m²
Tensile Strength: 510 PSI
Material: Black polymer, flexible, with high UV resistance
Dimensions: Length 15 m x Width 1.37 m (30′ x 54″), covering 12.5 sqm
Thickness: 3 mm

Acoustic properties:

Provides a minimum STC rating of 26 per ASTM E90-02 and E413-87, with sound reduction of no less than 19 dB(A) at 100 Hz.
Tested for STC and IIC sound transmission properties of wall, floor, and ceiling systems by an acoustic laboratory in accordance with ASTM E90-02, ASTM E413-87, and ASTM E989-89 standards.

Environmental Resistance:

Withstands temperatures up to 200°F (93°C) during a continuous 7-day test with less than 1% dimensional change.
The material can be hardened at temperatures of -40 °F or -40 °C.
It has UV resistance, is water-resistant, and is unaffected by washing.
It has mold growth prevention properties according to ASTM D3273 and ASTM D3274 standards (rating = 10).

Fire Protection Properties:

Prevents the spread of fire and smoke in wall, floor, and ceiling installation systems according to UL standards U300, U400, V400, and L500, as specified in the UL Fire Resistance Directory 2006, vol 1.

Acoustiblok has undergone sound performance testing (STC, NRC, IIC) in laboratories and NGO tests. Don’t let your project risk noise pollution—our Acoustiblok sound insulation has been tested both in the lab and in the field, and we can provide effective solutions for you.

We are the distributor of Acoustiblok sound insulation in Thailand. We are pleased to serve you.

Download Soundproofing Material Acoustiblok datasheet

Examples of Acoustiblok Applications in Various Forms
